Outline of product

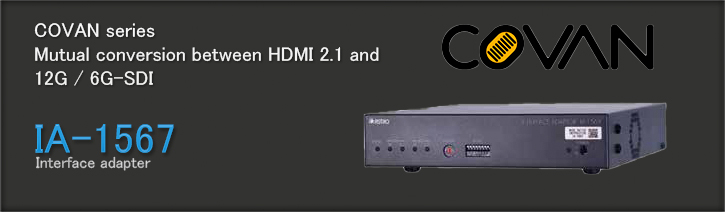

IA-1567 is an interface adapter that can convert between HDMI 2.1 and 12G/6G-SDI signals that support 8K and 4K.
It can be used to connect SDI devices to 8K TVs or 4K120Hz monitors, or to connect game consoles or GPUs to SDI devices.

Main Functions

・Mutual conversion between HDMI 2.1 and 12G/6G-SDI
・Supports various formats
 7680×4320 (2SI) 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
 7680×4320 (SQD) 60p/59.94p/50p
 4096×2160 (2SI) 60p/59.94p/50p/48p/47.95p
 3840×2160 (2SI) 120p/119p/100p/60p/59.94p/50p/48p/47.95p
 3840×2160 (O/E) 120p/119p/100p (60p/59.94p/50p x2)
・Small size and light weight
・3D LUT function

Connection Example

12G-SDI to HDMI 2.1 (8K60p)

8K Recorder HR-7520 →8KTV

12G-SDI to HDMI 2.1 (4K120p)

4K Recorder IR-7523 →4K 120Hz Monitor

HDMI 2.1 to 12G-SDl(8K60p)

8K Multi-platform AW-8803 → 8K Projector INSIGHT Laser 8K Imaging by ASTRO

HDMI 2.1 to 12G-SDI (4K120p)

Game console, GPU→4K 120Hz Recorder IR-7523

Specifications

SDI I/O
FormatLinkResolutionFrame RateSampling Structure/
Pixel Depth
InterfaceRelated Standards
8KQuad7680×432060p/59.94p/50pYCBCR 4:2:2 10bit12G-SDI Type1 2SISMPTE ST 2082-1/12
Quad(SQD)7680×432060p/59.94p/50pYCBCR 4:2:2 10bit

12G-SDI Type1
4K(2SI)×4

SMPTE ST 2082-1/10
Dual7680×432030p/29.97p/25p/24p/23.97pYCBCR 4:2:2 10bit12G-SDI Type1 2SISMPTE ST 2082-1/11
Quad7680×432030p/29.97p/25p/24p/23.97pYCBCR 4:2:2 10bit6G-SDI Type1 2SISMPTE ST 2081-1/12
4KQuad3840×2160120p/119.88p/100pYCBCR 4:2:2 10bit6G-SDI Type1 2SISMPTE ST 2082-1/12
Dual3840×2160120p/119.88p/100pYCBCR 4:2:2 10bit12G-SDI Type1 2SISMPTE ST 2082-1/11
(Odd/Even)3840×2160120p/119.88p/100pYCBCR 4:2:2 10bit12G-SDI Type1 2SI×2SMPTE ST 2082-1/10
Single4096×216060p/59.94p/50p/48p/47.95pYCBCR 4:2:2 10bit12G-SDI Type1 2SISMPTE ST 2082-1/10
Single3840×216060p/59.94p/50p/48p/47.95pYCBCR 4:2:2 10bit12G-SDI Type1 2SISMPTE ST 2081-1/10
HDMI2.1 I/O
FormatResolutionFrame RateSampling Structure/
Pixel Depth
FRL Rate  ✔:SupportedTMDSRemarks
10G/4L8G/4L6G/4L6G/3L3G/3L
8K7680×432060p/59.94p/50pYCBCR 4:2:0 10bit ✔
HDCP:Not supported
DSC:Not supported
Related standards:CTA-861-G
60p/59.94p/50pYCBCR 4:2:0 8bit ✔ ✔
30p/29.97p/25p/24p/23.97pRGB 4:4:4 10bit ✔
30p/29.97p/25p/24p/23.97pRGB 4:4:4 8bit ✔ ✔
30p/29.97p/25p/24p/23.97pYCBCR 4:4:4 10bit ✔
30p/29.97p/25p/24p/23.97pYCBCR 4:4:4 8bit ✔ ✔
30p/29.97p/25p/24p/23.97pYCBCR 4:2:2 10bit ✔
30p/29.97p/25p/24p/23.97pYCBCR 4:2:2 8bit ✔ ✔
30p/29.97p/25p/24p/23.97pYCBCR 4:2:0 10bit ✔ ✔ ✔
30p/29.97p/25p/24p/23.97pYCBCR 4:2:0 8bit ✔ ✔ ✔ ✔
4K3840×2160120p/119.88p/100p

RGB 4:4:4 10bit ✔
120p/119.88p/100p

RGB 4:4:4 8bit ✔ ✔
120p/119.88p/100p

YCBCR 4:4:4 10bit ✔
120p/119.88p/100pYCBCR 4:4:4 8bit ✔ ✔
120p/119.88p/100pYCBCR 4:2:2 10bit ✔
120p/119.88p/100pYCBCR 4:2:2 8bit ✔ ✔
120p/119.88p/100pYCBCR 4:2:0 10bit ✔ ✔ ✔
120p/119.88p/100pYCBCR 4:2:0 8bit ✔ ✔ ✔ ✔
4096×2160
3840×2160
60p/59.94p/50p/48p/47.95pRGB 4:4:4 10bit ✔ ✔ ✔
60p/59.94p/50p/48p/47.95pRGB 4:4:4 8bit ✔ ✔ ✔ ✔  ✔
60p/59.94p/50p/48p/47.95pYCBCR 4:4:4 10bit ✔ ✔ ✔
60p/59.94p/50p/48p/47.95pYCBCR 4:4:4 8bit ✔ ✔ ✔ ✔  ✔
60p/59.94p/50p/48p/47.95pYCBCR 4:2:2 10bit ✔ ✔ ✔ ✔  ✔
60p/59.94p/50p/48p/47.95pYCBCR 4:2:2 8bit ✔ ✔ ✔ ✔  ✔
60p/59.94p/50p/48p/47.95pYCBCR 4:2:0 10bit ✔ ✔ ✔ ✔  ✔
60p/59.94p/50p/48p/47.95pYCBCR 4:2:0 8bit ✔ ✔ ✔ ✔ ✔ ✔
Audio Performance
Sample Frequency48kHz
Quantization24bit
Number of Audio  ChannelsMax 32ch(HDMI Up to 8ch)
Reference Input
FormatBlack Burst Input (Compliant with EIA RS-170A)
Tri-Level Sync Input(Compliant with SMPTE 240M/274M/296M)
General Specifications
Power RequirementsDC 12V
Power Consumption45W MAX
Operating Temperature Range5~40℃
Operating Humidity Range20~80%RH (no condensation)
Dimensions210(W) × 44(H) × 210(D)mm(Excluding protrusions)
WeightApprox. 2.0 kg
