Outline of product

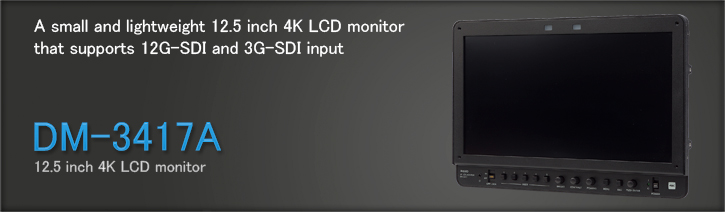

DM-3417A is small and lightweight 12.5 inch 4K LCD monitor that supports 12G-SDI and 3G-SDI input.
Features
· 12.5 inch LCD panel
· Display Resolution: 3840 (H) × 2160 (V)
· Supports 4096 × 2160 resolution input
· 12G-SDI 2 line input * or 3G-SDI 1 line input
* Line switching is possible
· HDR compatible (HLG: Rec. ITU-R BT. 2100, PQ: SMPTE ST 2084)
· In HLG, switching of Y gamma (1.07, 1.20, 1.33) is possible
· Rec.ITU-R BT.2020, Rec.ITU-R BT.709 compatible
· Active through output of input signal
· MAG function x2,x4
· Tally control by contact control
· Marker display
· Image quality adjustment function (contrast, brightness, peaking)
· Built-in test pattern display
· Focus assist function
· Battery compatible (DC 10.5 V - 17.0 V)
· Rack mount, VESA attachable
Specifications
| SDI I/O | ||||||
|---|---|---|---|---|---|---|
| Format | BNC | Resolution | Frame rate | Color Space/ Bit depth |
SDI Format | Standard |
| 4K | 1 | 3840×2160 or 4096×2160 |
50p/59.94p/60p | YCbCr 4:2:2 10bit |
12G-SDI Type 1 |
SMPTE ST 2082-1/10 |
| 4 | 3840×2160 or 4096×2160 |
50p/59.94p/60p | YCbCr 4:2:2 10bit |
3G-SDI Level A Spuare Division |
SMPTE ST 424-1/425-5 |
|
| 3G-SDI Level B Spuare Division |
||||||
| 3G-SDI Level A 2-Sample Interleave Division |
||||||
| 3G-SDI Level B 2-Sample Interleave Division |
||||||
| HD | 1 | 1920×1080 or 2048×1080 |
50i/59.94i/60i | YCbCr 4:2:2 10bit |
HD-SDI | SMPTE ST 292M |
|
Display |
|
|---|---|
|
Type |
TFT |
|
Display Mode |
Normally Black |
|
Display Color |
16,777,216 colors |
|
Contrast |
1500:1 (typ) |
|
Viewing Angle |
170°（U/D）178°（L/R） |
|
Response Speed |
Black→White+White→Black 30ms (typ) |
|
Brightness |
400cd/㎡ (typ) |
|
Size |
12.5inch |
|
Pixel Pitch |
0.072(H)×0.072(V) |
|
Brightness Life |
15,000 hours(LCD backlight luminance half time) |
|
General Specification |
|
|---|---|
|
Power Consumption |
30W |
|
Supply Voltage |
DC 10.5 - 17.0V |
|
Operating Temperature Range |
5 ～ 35℃ (no condensation) |
|
Operating Humidity Range |
20 ～ 80%RH (no condensation) |
|
Static Temperature Range |
-10 ～ 60℃ |
|
Dimensions |
310(W)×222(H)×60(D)mm |
|
Weight |
Approx. 2.0 kg |
